HEL D-15 Series

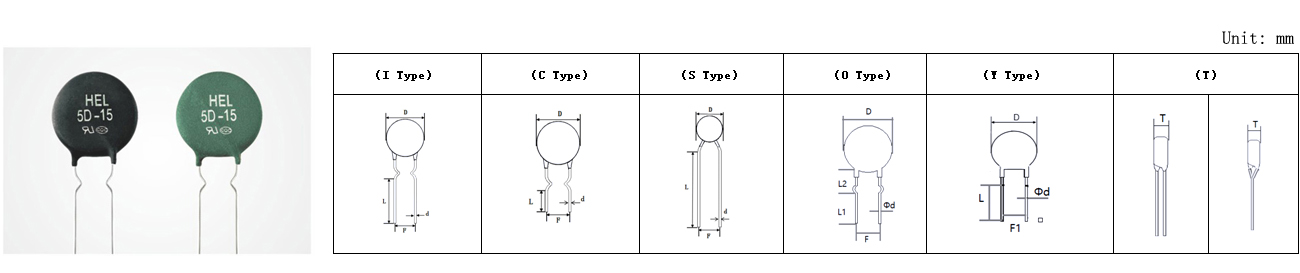

DIMENSION


Part No

Dmax

Tmax

?d ±0.1

F1 ±1

F2 ±1.5

Straight Lead Wire

彎腳
Curved Lead wire

Y Lead wire

L±1

L1±0.5

L2±2

L±1

NTC□D-15

17.5

6

0.75

10/7.5

5

2.8-20

2.8-20

7或4

2.8-20

ELECTRICAL CHARACTERISTICS

Part No Resistatance
tolerance		 Packing type
Lead wire type 		External dimensions Cutting Lead
mm		 Datasheet
Download		 Part No
1.3D-15 1.3D-15
1D-15 1D-15
1.5D-15 1.5D-15
2.5D-15 2.5D-15
3D-15 3D-15
5D-15 5D-15
7D-15 7D-15
8D-15 8D-15
10D-15 10D-15
15D-15 15D-15
16D-15 16D-15
18D-15 18D-15
20D-15 20D-15
30D-15 30D-15
47D-15 47D-15
50D-15 50D-15

Note: * means the reference value

Resistatance tolerance:M：±20%；L：±15%(customized)

Packing type: B: Bulk packing; C: Cutting lead wire & bulk packing; T: Tape & box packing

Lead wire type: S: Straight lead; I: Kink lead; O: Out-kink lead; Y: Side Bend

Safety certificate : CQC 10001052520 | UL/CUL E319959 | TUV NO.B0016170001

Quality Management Certificate: ISO9001： 2015Certificates | ISO14001： 2015Certificates

Resistance-Temperature Characteristics Static V/I Characteristics

Safety certification for Corresponding models

Part No. R25
（Ω） 		Safety certifications Part No. R25
（Ω） 		Safety certifications
UL/CUL CQC TUV UL/CUL CQC TUV
5D-5 5 √   √ 2.5D-13 2.5 √ √ √
8D-5 8 √   √ 3D-13 3 √ √ √
10D-5 10 √   √ 4.7D-13 4.7 √ √ √
20D-5 20 √   √ 5D-13 5 √ √ √
33D-5 33 √   √ 8D-13 8 √ √ √
5D-7 5 √ √ √ 10D-13 10 √ √ √
8D-7 8 √ √ √ 16D-13 16 √ √ √
10D-7 10 √ √ √ 18D-13 18 √ √ √
12D-7 12 √ √ √ 20D-13 20 √ √ √
16D-7 16 √ √ √ 30D-13 30 √ √ √
20D-7 20 √ √ √ 47D-13 40 √ √ √
22D-7 22 √ √ √ 1.5D-15 1.5 √ √ √
33D-7 33 √ √ √ 2.5D-15 2.5 √ √ √
3D-9 3 √ √ √ 3D-15 3 √ √ √
5D-9 5 √ √ √ 5D-15 5 √ √ √
6D-9 6 √ √ √ 7D-15 7 √ √ √
8D-9 8 √ √ √ 8D-15 8 √ √ √
10D-9 10 √ √ √ 10D-15 10 √ √ √
12D-9 12 √ √ √ 15D-15 15 √ √ √
15D-9 15 √ √ √ 16D-15 16 √ √ √
16D-9 16 √ √ √ 18D-15 18 √ √ √
20D-9 20 √ √ √ 20D-15 20 √ √ √
22D-9 22 √ √ √ 30D-15 30 √ √ √
33D-9 33 √ √ √ 47D-15 47 √ √ √
50D-9 50 √ √ √ 50D-15 50 √ √ √
100D-9 100 √ √ √ 1.3D-20 1.3 √ √ √
120D-9 120 √ √ √ 1.5D-20 1.5 √ √ √
2.5D-11 2.5 √ √ √ 2.5D-20 2.5 √ √ √
3D-11 3 √ √ √ 3D-20 3 √ √ √
5D-11 5 √ √ √ 5D-20 5 √ √ √
8D-11 8 √ √ √ 8D-20 8 √ √ √
10D-11 10 √ √ √ 10D-20 10 √ √ √
12D-11 12 √ √ √ 16D-20 16 √ √ √
15D-11 15 √ √ √ 20D-20 20 √ √ √
16D-11 16 √ √ √ Note:
UL/CUL certificate number:E319959
CQC??? certificate number:10001052520
TUV??? certificate number:NO.B0016170001
20D-11 20 √ √ √
33D-11 33 √ √ √
47D-11 47 √ √ √
50D-11 50 √ √ √
